Titaniyamu flange chubu mapepala are critical components in various industrial applications, particularly in heat exchangers and pressure vessels. These specialized components are known for their exceptional strength, corrosion resistance, and durability. The manufacturing and fabrication of titanium flange tube sheets involve a series of precise processes to ensure the highest quality and performance standards. In this blog post, we'll explore the intricate steps involved in producing these essential industrial parts.

What are the key steps in titanium flange tube sheet production?

The production of titanium flange tube sheets involves several crucial steps, each contributing to the final product's quality and functionality. The process typically begins with material selection and preparation, followed by forming, machining, and finishing operations.

1. Material Selection and Preparation: The first step in manufacturing titanium flange tube sheets is selecting the appropriate grade of titanium. Grades such as Ti-6Al-4V or commercially pure titanium are commonly used due to their excellent mechanical properties and corrosion resistance. The raw material, usually in the form of plates or sheets, is carefully inspected for any defects or inconsistencies.

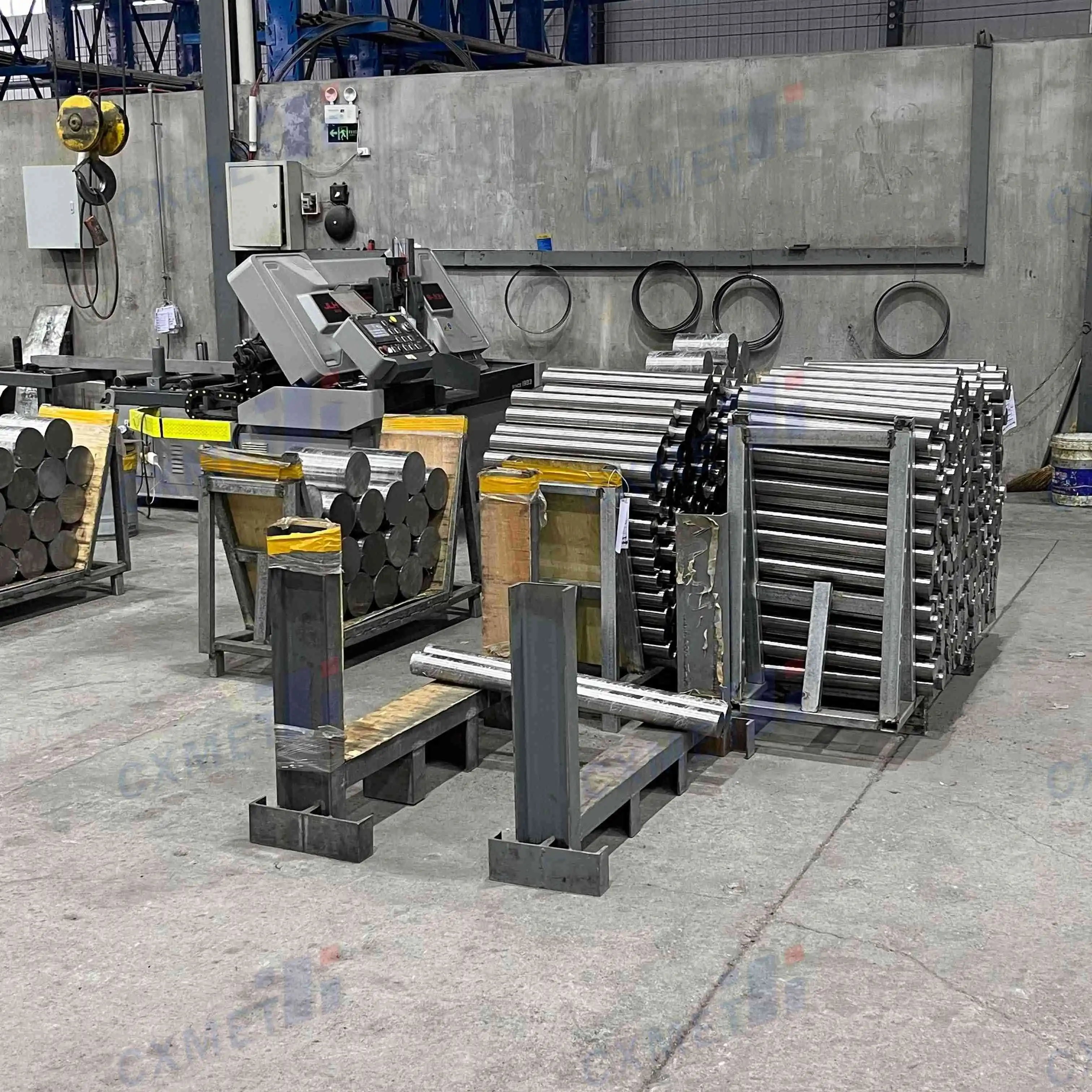

2. Cutting and Shaping: The titanium sheets are cut to the desired size and shape using various methods, including waterjet cutting, plasma cutting, or laser cutting. These precision cutting techniques ensure accurate dimensions and minimize material waste.

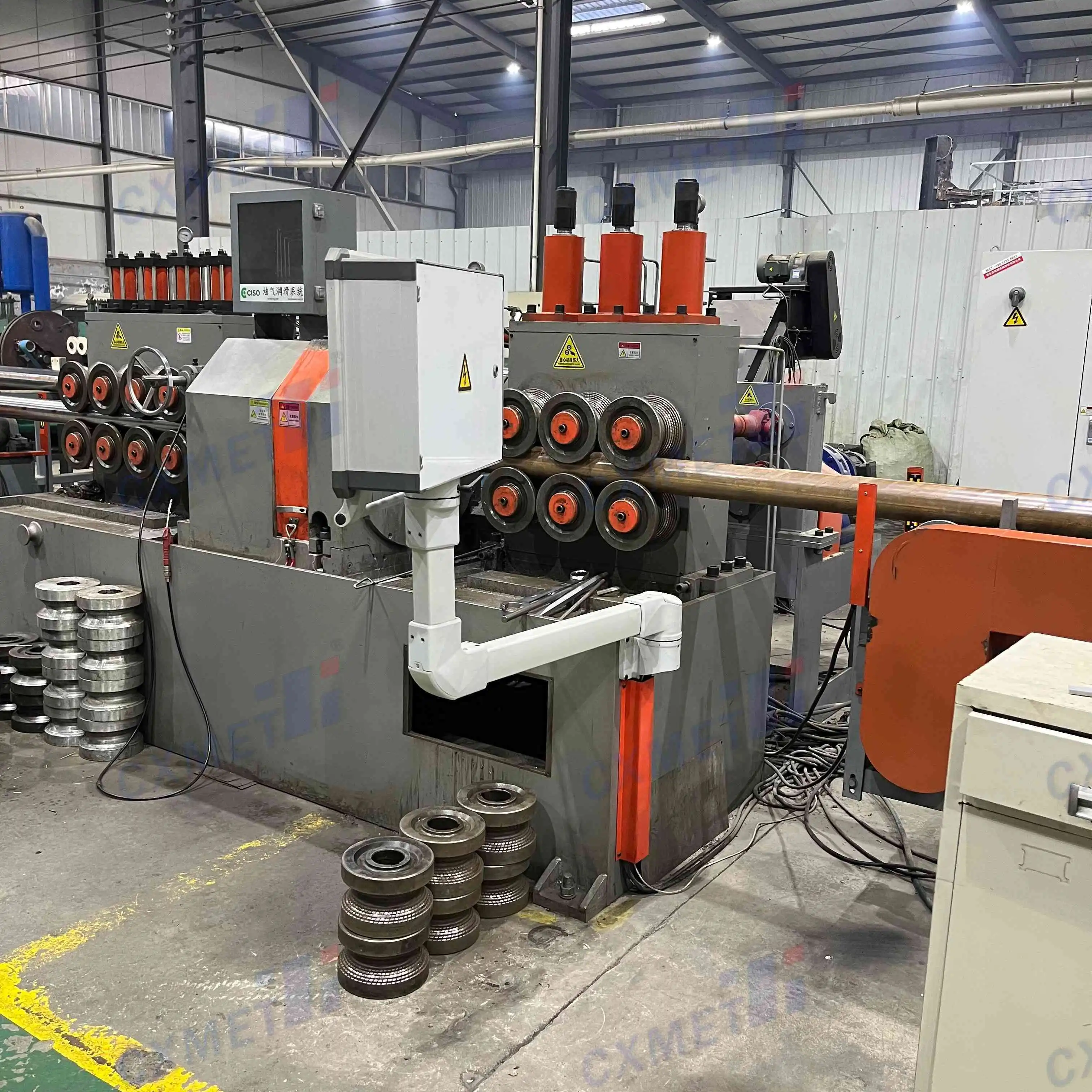

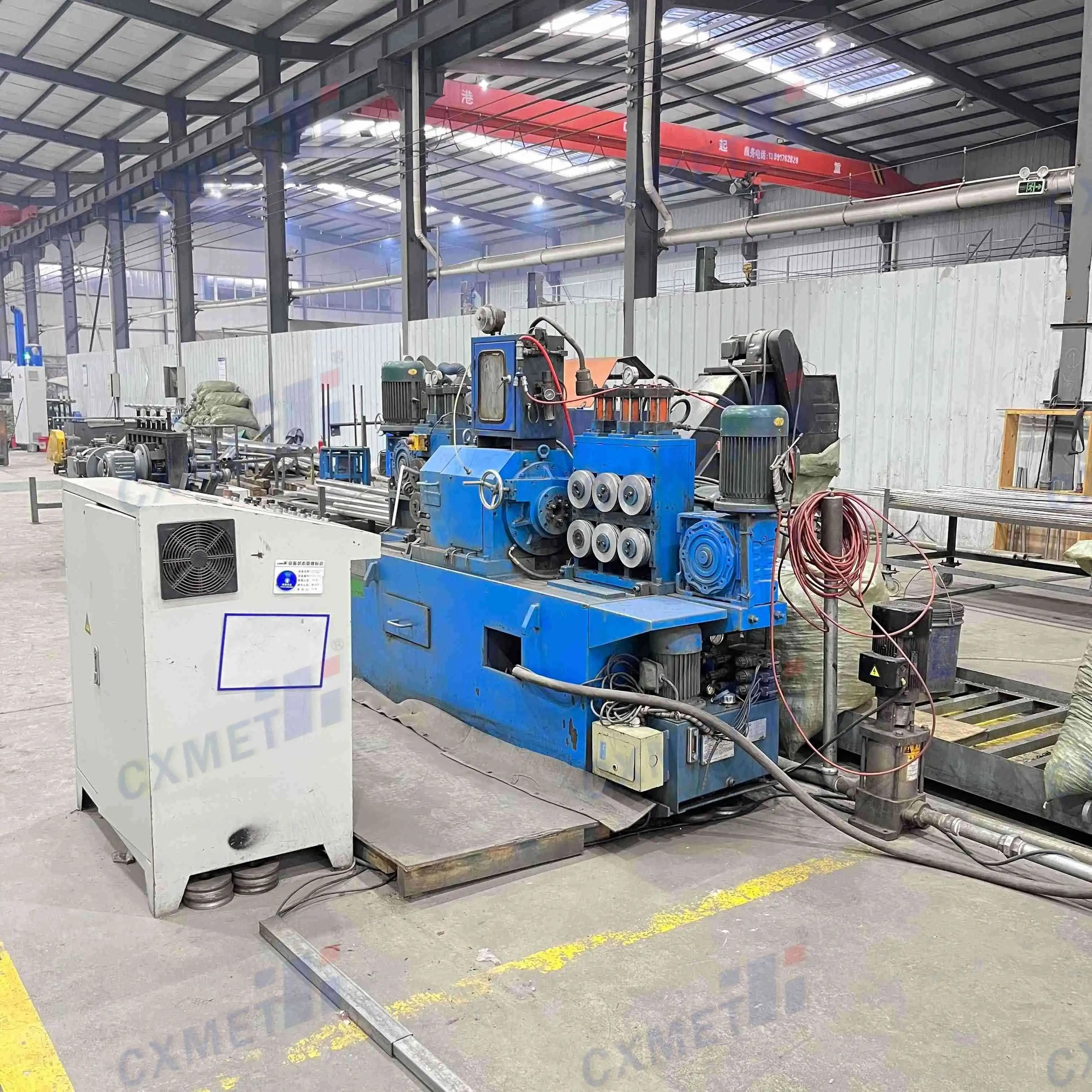

3. Forming: Depending on the design requirements, the cut titanium sheets may undergo forming processes such as rolling, pressing, or bending to achieve the desired shape and contour. This step is crucial for creating the flange portion of the tube sheet.

4. Drilling and Hole Preparation: One of the most critical steps in titaniyamu flange chubu pepala production is the drilling of holes for tube insertion. This process requires specialized equipment and expertise due to titanium's hardness and tendency to work harden. Computer Numerical Control (CNC) drilling machines are often used to ensure precise hole placement and dimensions.

5. Surface Treatment: After drilling, the tube sheet undergoes surface treatment processes to enhance its properties. This may include chemical cleaning, passivation, or other surface finishing techniques to improve corrosion resistance and prepare the surface for tube insertion.

6. Quality Control: Throughout the production process, rigorous quality control measures are implemented. This includes dimensional checks, non-destructive testing (such as ultrasonic or radiographic inspection), and material composition analysis to ensure the tube sheet meets all specified requirements.

7. Final Assembly: In some cases, the titanium flange tube sheet may be partially or fully assembled with tubes before delivery. This step involves careful insertion and securing of tubes within the drilled holes, often using expansion or welding techniques.

The manufacturing of titanium flange tube sheets requires a combination of advanced technology, skilled craftsmanship, and strict quality control measures. Each step in the process contributes to the final product's performance, reliability, and longevity in demanding industrial applications.

What are the challenges in manufacturing titanium flange tube sheets?

Manufacturing titanium flange tube sheets presents several unique challenges due to the material's properties and the precision required in the fabrication process. Understanding and overcoming these challenges is crucial for producing high-quality components that meet stringent industry standards.

1. Material Hardness and Machining Difficulties: Titanium is known for its high strength-to-weight ratio, but this also makes it challenging to machine. The material's hardness can lead to rapid tool wear and increased production time. Specialized cutting tools and machining techniques are required to effectively work with titanium, often resulting in higher production costs.

2. Heat Generation and Management: During machining processes, titanium tends to generate significant heat due to its low thermal conductivity. This heat can cause tool degradation and affect the dimensional accuracy of the tube sheet. Manufacturers must employ advanced cooling techniques and optimize cutting parameters to manage heat generation effectively.

3. Work Hardening: Titanium is prone to work hardening during machining, which can further increase its hardness and make subsequent operations more difficult. This phenomenon requires careful planning of machining sequences and the use of appropriate cutting strategies to minimize work hardening effects.

4. Precision Drilling: Creating accurately positioned and dimensioned holes for tube insertion is one of the most challenging aspects of titanium flange tube sheet production. The material's properties make it susceptible to drill wandering and burr formation, which can compromise the integrity of the tube-to-tubesheet joint. Advanced drilling techniques and specialized equipment are necessary to achieve the required precision.

5. Welding Complexities: When welding is required for tube attachment or other fabrication processes, titanium presents additional challenges. The material is highly reactive at elevated temperatures and requires stringent atmospheric control to prevent contamination and maintain weld quality. Specialized welding equipment and expertise are essential for successful titanium welding operations.

6. Surface Finishing: Achieving the desired surface finish on titaniyamu flange chubu mapepala can be challenging due to the material's hardness and tendency to gall. Specialized finishing techniques and careful selection of abrasives are necessary to produce the required surface characteristics without compromising the material's properties.

7. Quality Control and Inspection: The critical nature of titanium flange tube sheets in their applications demands rigorous quality control measures. Non-destructive testing methods such as ultrasonic inspection and radiography must be carefully adapted for use with titanium, considering its unique acoustic and radiographic properties.

8. Cost Management: The combination of expensive raw materials, specialized equipment, and skilled labor required for titanium flange tube sheet production results in higher manufacturing costs compared to other materials. Balancing cost-effectiveness with quality and performance requirements is an ongoing challenge for manufacturers.

Overcoming these challenges requires a combination of advanced technology, specialized expertise, and continuous innovation in manufacturing processes. Successful production of titanium flange tube sheets depends on addressing each of these challenges while maintaining the highest standards of quality and performance.

How does the design of titanium flange tube sheets impact their manufacturing process?

The design of titanium flange tube sheets plays a crucial role in determining the manufacturing process and its complexities. Various design factors directly influence the fabrication techniques, equipment requirements, and overall production efficiency. Understanding the relationship between design and manufacturing is essential for optimizing both the performance and producibility of titaniyamu flange chubu mapepala.

1. Thickness and Size Considerations: The overall dimensions and thickness of the tube sheet significantly impact the manufacturing process. Thicker tube sheets may require specialized cutting and drilling equipment to maintain accuracy and efficiency. Larger sizes can present challenges in material handling, heat treatment, and surface finishing, potentially necessitating custom manufacturing solutions.

2. Hole Pattern and Density: The arrangement and density of tube holes in the tube sheet design directly affect the drilling process. Complex hole patterns or high hole densities increase the likelihood of drill wandering and require more precise machining centers. The spacing between holes also influences the structural integrity of the tube sheet and may necessitate specific manufacturing techniques to maintain strength and prevent deformation.

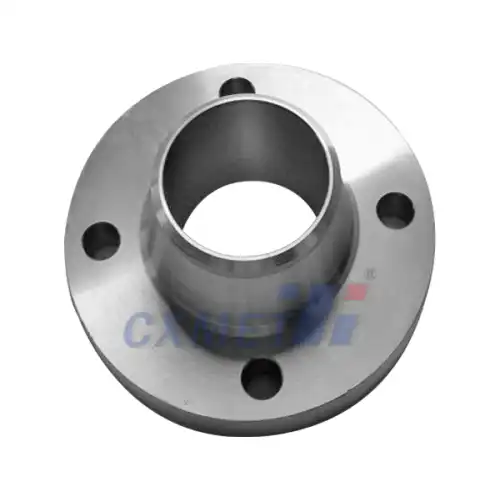

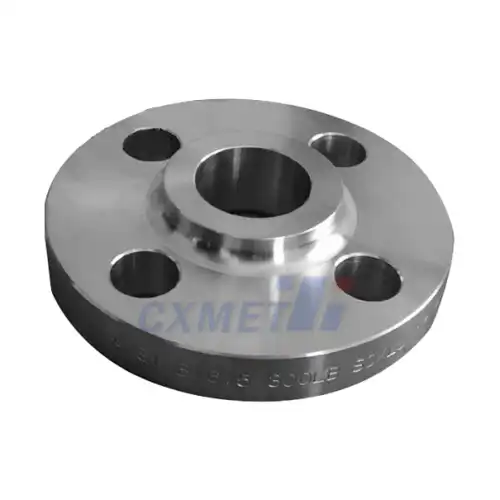

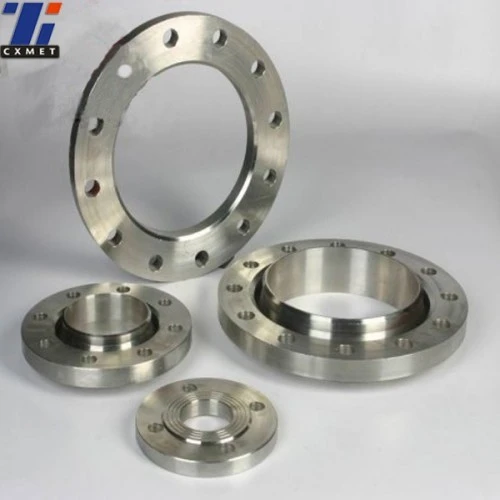

3. Flange Design: The configuration of the flange portion of the tube sheet impacts the forming and machining processes. Integral flanges may require additional forging or machining steps, while loose flanges might involve separate manufacturing and assembly processes. The flange design also affects the overall material utilization and can influence the choice of raw material form (plate vs. forging).

4. Surface Finish Requirements: The specified surface finish for different areas of the tube sheet, particularly the sealing surfaces and tube holes, dictates the type and sequence of finishing operations. Higher surface finish requirements may necessitate additional polishing or lapping steps, increasing production time and costs.

5. Tube-to-Tubesheet Joint Design: The method of tube attachment specified in the design (e.g., welding, expansion, or a combination) significantly impacts the manufacturing process. Designs incorporating welded joints require specialized welding procedures and equipment, while expanded joints may need precise hole tolerances and surface preparations.

6. Corrosion Allowance and Material Grade: The specified corrosion allowance and choice of titanium grade influence material selection and potentially the manufacturing approach. Higher corrosion allowances may require thicker initial stock, affecting cutting and drilling processes. Different titanium grades can exhibit varying machinability characteristics, necessitating adjustments in cutting parameters and tool selection.

7. Tolerance Requirements: Tight tolerances specified in the design, particularly for critical dimensions such as hole diameters and positions, flange flatness, and overall dimensions, directly impact the manufacturing process. Achieving and maintaining these tolerances may require more advanced machining equipment, increased inspection frequency, and potentially iterative manufacturing steps.

8. Stress Relief and Heat Treatment: Design considerations for residual stress management and material properties may necessitate specific heat treatment processes. The inclusion of these treatments impacts the overall manufacturing sequence and can affect dimensional stability, requiring careful planning and execution.

9. Special Features: Any unique design features, such as integral baffles, reinforcement zones, or custom nozzle connections, can significantly complicate the manufacturing process. These elements may require specialized tooling, additional machining operations, or innovative fabrication techniques.

10. Quality Assurance Requirements: The design specifications for inspection and testing, including non-destructive examination methods and acceptance criteria, influence the manufacturing process by dictating inspection points and potentially requiring in-process adjustments to meet quality standards.

To optimize the manufacturing process for titanium flange tube sheets, close collaboration between design engineers and manufacturing specialists is essential. This cooperation allows for design refinements that enhance producibility without compromising performance. Techniques such as Design for Manufacturability (DFM) and concurrent engineering can be employed to address potential manufacturing challenges early in the design phase, leading to more efficient and cost-effective production processes.

Pomaliza, mapangidwe a titaniyamu flange chubu mapepala has a profound impact on their manufacturing process. By carefully considering the interplay between design features and production requirements, manufacturers can develop optimal strategies for fabricating these critical components, balancing performance, quality, and manufacturing efficiency.

Ku SHAANXI CXMET TECHNOLOGY CO., LTD, timanyadira zamitundu yathu yayikulu, yomwe imathandizira zosowa zosiyanasiyana zamakasitomala. Kampani yathu ili ndi luso lapadera lopanga ndi kukonza, kuwonetsetsa kuti zinthu zathu ndi zapamwamba komanso zolondola. Ndife odzipereka pazatsopano ndipo timayesetsa mosalekeza kupanga zinthu zatsopano, kutipangitsa kukhala patsogolo pamakampani athu. Ndi luso lotsogola laukadaulo, timatha kusintha ndikusintha msika womwe ukusintha mwachangu. Kuphatikiza apo, timapereka mayankho osinthika kuti akwaniritse zofunikira zamakasitomala athu. Ngati muli ndi chidwi ndi zinthu zathu kapena mukufuna kudziwa zambiri zazomwe timapereka, chonde musazengereze kutilankhula nafe pa sales@cxmet.com. Gulu lathu limakhala lokonzeka nthawi zonse kukuthandizani.

Zothandizira

1. ASTM International. (2021). ASTM B265-21 Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate.
2. Titanium Processing Center. (n.d.). Titanium Manufacturing Process.
3. Donachie, MJ (2000). Titaniyamu: A Technical Guide (2nd ed.). ASM International.
4. Heat Exchanger Institute. (2019). Standards for Power Plant Heat Exchangers (6th ed.).
5. Leyens, C., & Peters, M. (Eds.). (2003). Titaniyamu ndi Titaniyamu Aloyi: Zofunika ndi Ntchito. Wiley-VCH.
6. TEMA. (2019). Standards of the Tubular Exchanger Manufacturers Association (10th ed.).
7. Lutjering, G., & Williams, JC (2007). Titaniyamu (2nd ed.). Springer-Verlag Berlin Heidelberg.
8. ASM International. (2005). ASM Handbook, Volume 14A: Metalworking: Bulk Forming.
9. Kopeliovich, D. (n.d.). Fabrication of Tube Sheets. SubsTech.
10. Peters, M., Kumpfert, J., Ward, CH, & Leyens, C. (2003). Titanium Alloys for Aerospace Applications. Zida Zaukadaulo Zapamwamba, 5(6), 419-427.
