Hafnium waya is an captivating fabric that has gathered consideration in different high-tech businesses, counting semiconductor fabricating. As the request for more progressed and effective electronic gadgets proceeds to develop, analysts and engineers are always investigating modern materials and strategies to upgrade semiconductor execution. In this blog, we'll investigate the part of hafnium wire in semiconductor generation and address a few common questions around its applications and properties.

What are the main applications of hafnium in the semiconductor industry?

Hafnium has found several important applications in the semiconductor industry, primarily due to its unique properties and compatibility with existing manufacturing processes. While waya wa hafnium itself is not directly used in semiconductor devices, hafnium-based compounds and materials play crucial roles in various aspects of semiconductor production.

One of the most significant applications of hafnium in semiconductors is its use as a high-k dielectric material. As transistors have continued to shrink in size, traditional silicon dioxide gate dielectrics have become too thin to prevent electron tunneling, leading to increased power consumption and reduced device performance. Hafnium-based compounds, such as hafnium oxide (HfO2) and hafnium silicate (HfSiO4), have emerged as excellent alternatives due to their higher dielectric constants and ability to form ultra-thin layers.

These hafnium-based high-k dielectrics allow for continued transistor scaling while maintaining low leakage currents and improved electrical characteristics. Major semiconductor manufacturers, including Intel and TSMC, have incorporated hafnium-based materials into their advanced process nodes, enabling the production of more powerful and energy-efficient chips.

Another important application of hafnium in the semiconductor industry is in the fabrication of metal gates. As the industry transitioned from polysilicon gates to metal gates to address performance issues at smaller process nodes, hafnium-based materials have proven to be excellent candidates for metal gate electrodes. Hafnium nitride (HfN) and hafnium carbide (HfC) are often used in combination with other metals to create gate stacks with optimal work functions and electrical properties.

Hafnium is also utilized in the production of specialized coatings for semiconductor manufacturing equipment. These coatings help protect critical components from corrosion and wear, especially in plasma-based processes used in etching and deposition. The high melting point and excellent chemical stability of hafnium make it well-suited for these demanding environments.

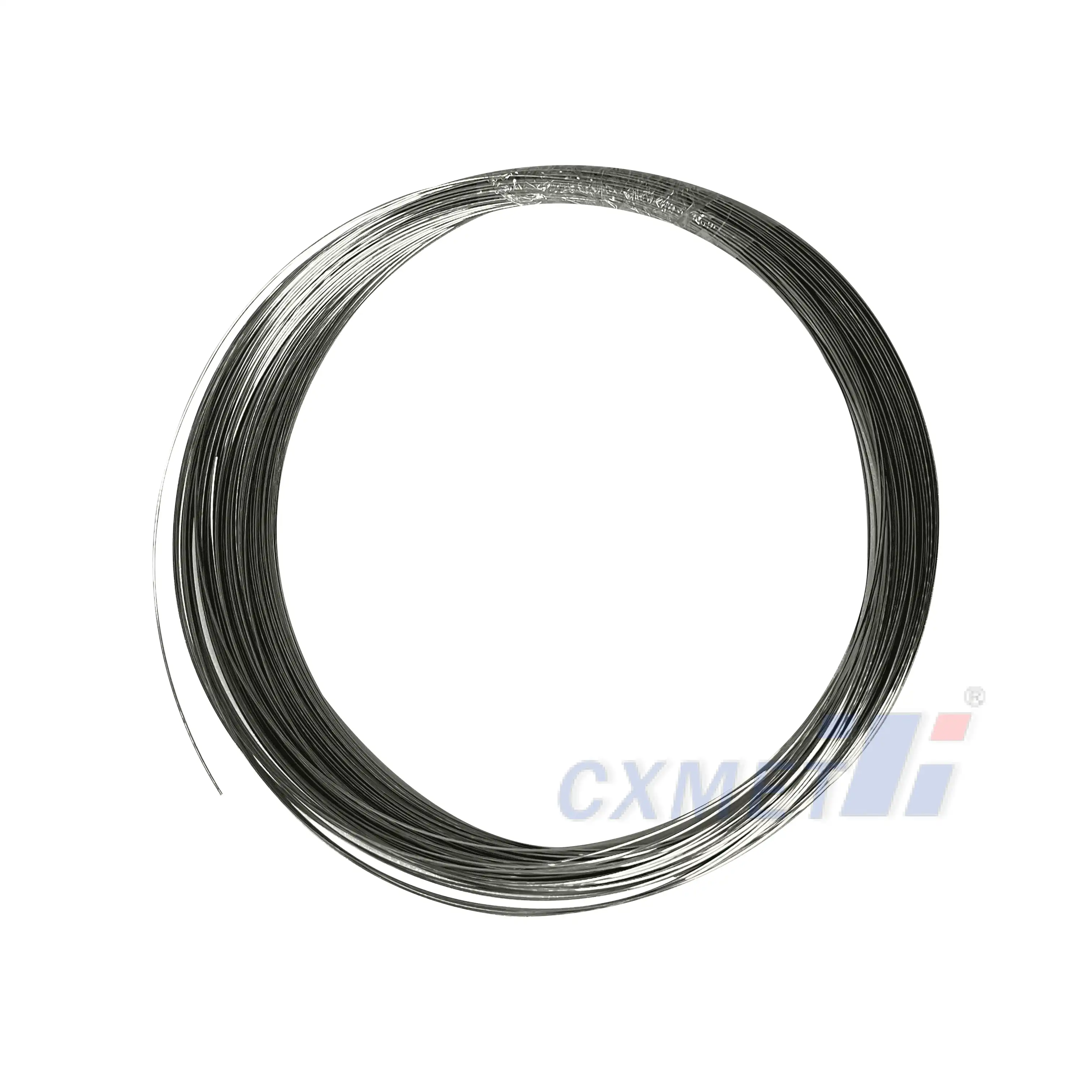

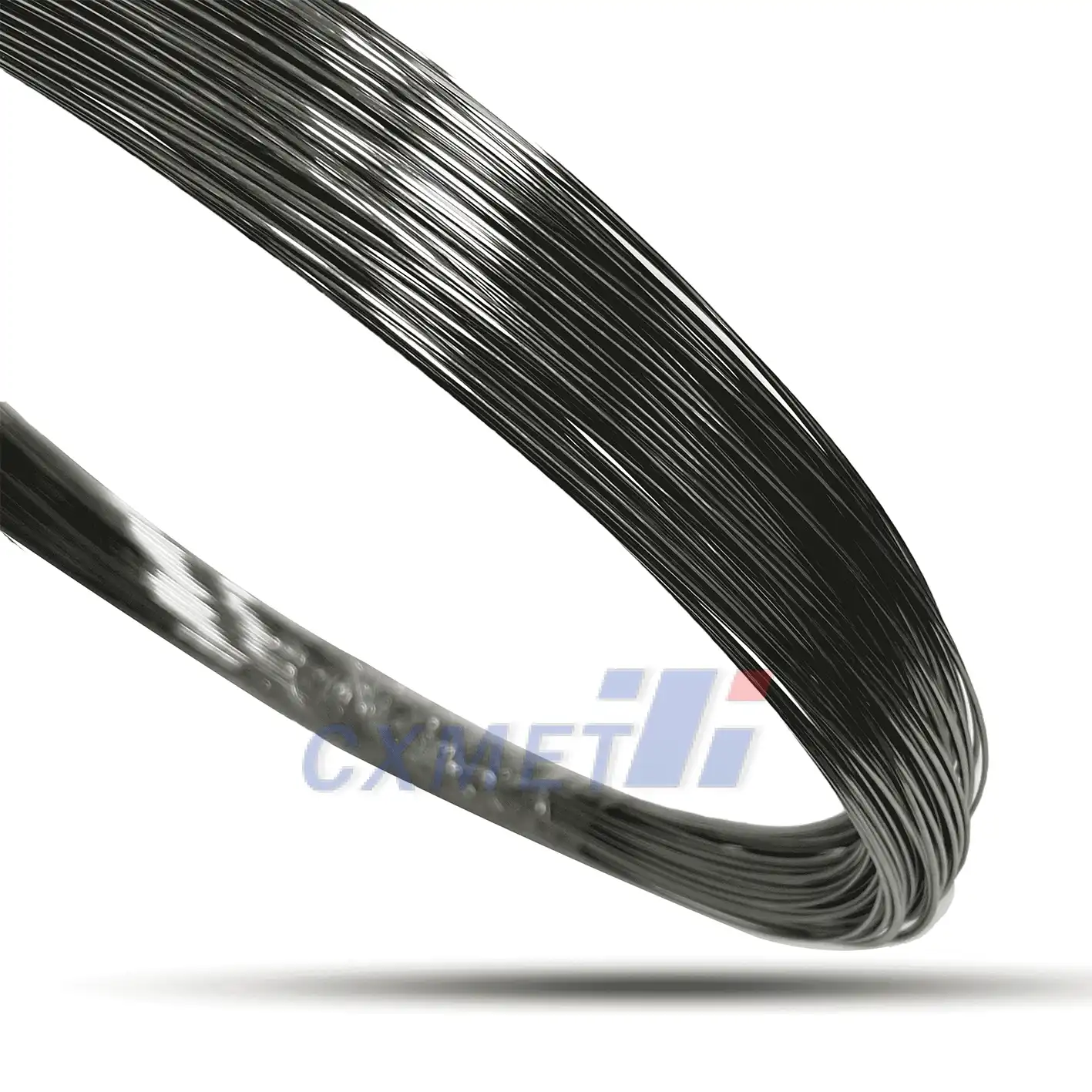

pamene waya wa hafnium itself is not directly incorporated into semiconductor devices, it serves as a precursor material for the production of various hafnium-based compounds used in the industry. The wire form of hafnium is often used as a starting material for physical vapor deposition (PVD) processes, where it can be evaporated or sputtered to create thin films of hafnium or its compounds on semiconductor wafers.

How does hafnium compare to other materials used in semiconductor manufacturing?

Hafnium has several unique properties that make it advantageous compared to other materials used in semiconductor manufacturing. When considering alternatives, it's essential to evaluate factors such as electrical properties, thermal stability, compatibility with existing processes, and overall performance impact on the final devices.

One of the primary advantages of hafnium-based materials, particularly in high-k dielectric applications, is their significantly higher dielectric constant compared to traditional silicon dioxide. While silicon dioxide has a dielectric constant of about 3.9, hafnium oxide can achieve values ranging from 18 to 25. This higher dielectric constant allows for thicker physical layers while maintaining the same electrical thickness, effectively reducing leakage currents and improving overall device performance.

Compared to other high-k materials like aluminum oxide (Al2O3) or zirconium oxide (ZrO2), hafnium-based dielectrics often exhibit better thermal stability and compatibility with silicon. This compatibility is crucial for maintaining a high-quality interface between the dielectric and the silicon channel, which directly impacts electron mobility and device performance.

In terms of metal gate applications, hafnium-based materials offer excellent work function tunability when combined with other metals. This allows semiconductor manufacturers to optimize the threshold voltage of both NMOS and PMOS transistors, which is essential for achieving balanced performance in CMOS circuits. Alternative metal gate materials, such as titanium nitride (TiN) or tantalum nitride (TaN), may not offer the same level of flexibility or compatibility with high-k dielectrics.

Hafnium also demonstrates superior resistance to high-temperature processes compared to many other materials used in semiconductor manufacturing. This thermal stability is particularly important as process temperatures in advanced nodes can reach up to 1000°C or higher during annealing steps. Materials that cannot withstand these temperatures may degrade or react unfavorably, leading to device reliability issues.

When considering the use of hafnium in protective coatings for semiconductor manufacturing equipment, its high melting point (2233°C) and excellent corrosion resistance make it stand out compared to alternatives like titanium or zirconium. These properties ensure that hafnium-based coatings can withstand the harsh conditions present in plasma etching and deposition chambers, prolonging the lifespan of critical components and reducing maintenance downtime.

Despite its advantages, it's worth noting that hafnium is a relatively rare and expensive element compared to some alternatives. However, the small quantities required in semiconductor applications and the significant performance benefits often justify its use in advanced process nodes.

What are the challenges in incorporating hafnium into semiconductor devices?

While hafnium has proven to be a valuable material in semiconductor manufacturing, its incorporation into devices and processes is not without challenges. Understanding and addressing these challenges is crucial for maximizing the benefits of hafnium-based materials in semiconductor applications.

Chimodzi mwa zovuta zoyamba kugwira ntchito ndi waya wa hafnium is controlling its oxidation state and interface quality. When depositing hafnium-based dielectrics, it's essential to maintain precise control over the oxidation process to achieve the desired stoichiometry and minimize defects. Excess oxygen can lead to the formation of an undesirable interfacial layer between the high-k dielectric and the silicon substrate, potentially degrading device performance. Conversely, insufficient oxidation can result in a high concentration of oxygen vacancies, which can act as charge traps and contribute to threshold voltage instability.

Another significant challenge is managing the crystallization of hafnium-based dielectrics. While amorphous hafnium oxide is generally preferred for its uniform electrical properties, high-temperature processes can cause crystallization, leading to increased leakage currents and reliability issues. To address this, researchers and manufacturers have explored various techniques, such as incorporating silicon or nitrogen into the hafnium oxide to increase its crystallization temperature or using multilayer structures to inhibit grain growth.

Integrating hafnium-based materials into existing semiconductor manufacturing processes also presents challenges. The introduction of new materials often requires modifications to deposition, etching, and cleaning steps, which can impact overall process flow and yield. For example, etching hafnium-based dielectrics can be more challenging than etching traditional silicon dioxide, requiring the development of new etch chemistries and processes.

Compatibility with other materials in the device stack is another critical consideration. The interaction between hafnium-based dielectrics and metal gates, as well as their impact on the underlying silicon channel, must be carefully managed to optimize device performance. This often involves extensive materials engineering and interface engineering to achieve the desired electrical characteristics and reliability.

Contamination control is also a significant challenge when working with hafnium in semiconductor manufacturing. As a transition metal, hafnium can potentially introduce unwanted impurities into the device structure if not properly handled. Strict quality control measures and specialized cleaning procedures are necessary to ensure the purity of hafnium-based materials and prevent contamination of other process steps.

Lastly, the cost and availability of hafnium can pose challenges for widespread adoption in the semiconductor industry. As a relatively rare element, the supply chain for hafnium is less developed compared to more common materials like silicon or aluminum. This can lead to price volatility and potential supply constraints, which must be carefully managed by semiconductor manufacturers to ensure a stable production environment.

Despite these challenges, the benefits of incorporating hafnium-based materials into semiconductor devices have driven continued research and development efforts. As the industry gains more experience working with waya wa hafnium and develops innovative solutions to address these challenges, we can expect to see even broader adoption of hafnium-based technologies in future semiconductor generations.

Ku SHAANXI CXMET TECHNOLOGY CO., LTD, timanyadira zamitundu yathu yayikulu, yomwe imathandizira zosowa zosiyanasiyana zamakasitomala. Kampani yathu ili ndi luso lapadera lopanga ndi kukonza, kuwonetsetsa kuti zinthu zathu ndi zapamwamba komanso zolondola. Ndife odzipereka pazatsopano ndipo timayesetsa mosalekeza kupanga zinthu zatsopano, kutipangitsa kukhala patsogolo pamakampani athu. Ndi luso lotsogola laukadaulo, timatha kusintha ndikusintha msika womwe ukusintha mwachangu. Kuphatikiza apo, timapereka mayankho osinthika kuti akwaniritse zofunikira zamakasitomala athu. Ngati muli ndi chidwi ndi zinthu zathu kapena mukufuna kudziwa zambiri zazomwe timapereka, chonde musazengereze kutilankhula nafe pa sales@cxmet.com. Gulu lathu limakhala lokonzeka nthawi zonse kukuthandizani.

Zothandizira

1. Wilk, G. D., Wallace, R. M., & Anthony, J. M. (2001). High-κ gate dielectrics: Current status and materials properties considerations. Journal of Applied Physics, 89(10), 5243-5275.

2. Choi, C., et al. (2002). Fabrication of HfO2 gate dielectric MOSFETs with polysilicon gate electrodes for high-performance CMOS applications. IEEE Transactions on Electron Devices, 49(7), 1259-1264.

3. Robertson, J. (2006). High dielectric constant oxides. The European Physical Journal Applied Physics, 28(3), 265-291.

4. Huff, H. R., & Gilmer, D. C. (Eds.). (2005). High dielectric constant materials: VLSI MOSFET applications. Springer Science & Business Media.

5. Kamata, Y. (2008). High-k/Ge MOSFETs for future nanoelectronics. Materials Today, 11(1-2), 30-38.

6. Houssa, M. (Ed.). (2003). High-k gate dielectrics. CRC Press.
