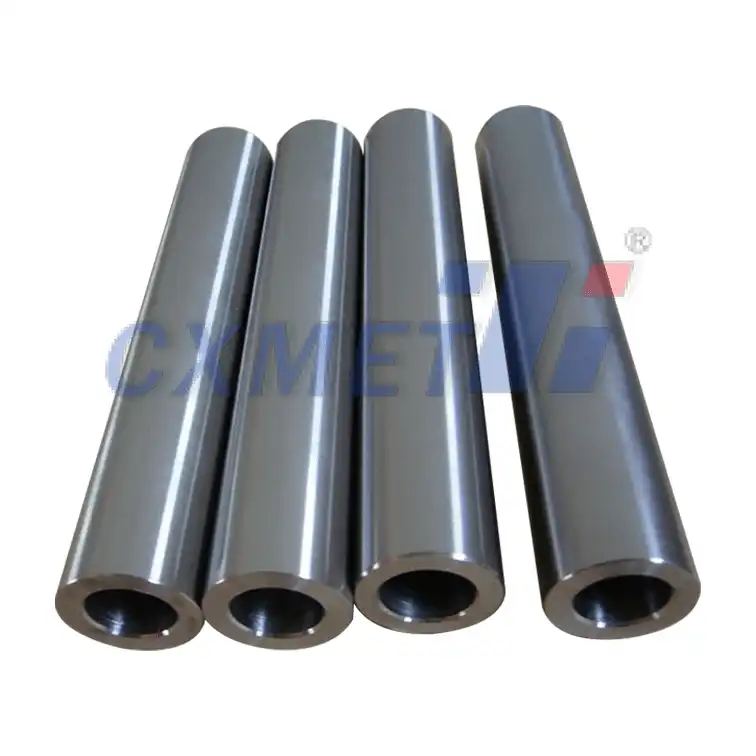

What are the key dimensional requirements for ASTM B861 titanium tubes?

ASTM B861 titaniyamu machubu are subject to specific dimensional requirements to ensure consistency and reliability in various applications. The key dimensional requirements for these tubes include:

1. Outside Diameter (OD): The outside diameter of ASTM B861 titanium tubes is specified with tight tolerances to ensure proper fit and function in different assemblies. For tubes with an OD of 0.500 inches (12.7 mm) or less, the tolerance is typically ±0.005 inches (±0.13 mm). For larger diameters, the tolerance may increase proportionally.
2. Wall Thickness: The wall thickness of ASTM B861 titanium tubes is critical for structural integrity and performance. The standard typically allows for a tolerance of ±10% of the nominal wall thickness. This ensures that the tube can withstand the required pressures and loads while maintaining its weight and material efficiency.
3. Length: The length tolerance for ASTM B861 titanium tubes varies depending on the specified length and manufacturing process. For cut lengths, the tolerance is usually ±0.125 inches (±3.18 mm) for lengths up to 8 feet (2.44 m). For longer tubes, the tolerance may increase to ±0.250 inches (±6.35 mm).
4. Straightness: ASTM B861 specifies straightness requirements to ensure proper alignment and fit in various applications. The maximum deviation from straightness is typically 0.010 inches per linear foot (0.83 mm per meter) of length.
5. Ovality: Ovality, or the difference between the maximum and minimum outside diameters at any cross-section, is limited to prevent issues with fitting and sealing. The maximum allowable ovality is usually 1.5% of the specified outside diameter.

These dimensional requirements are essential for ensuring the quality and performance of ASTM B861 titanium tubes in various applications, such as aerospace, chemical processing, and marine environments. Manufacturers must adhere to these specifications to produce tubes that meet the standard's requirements and customer expectations.

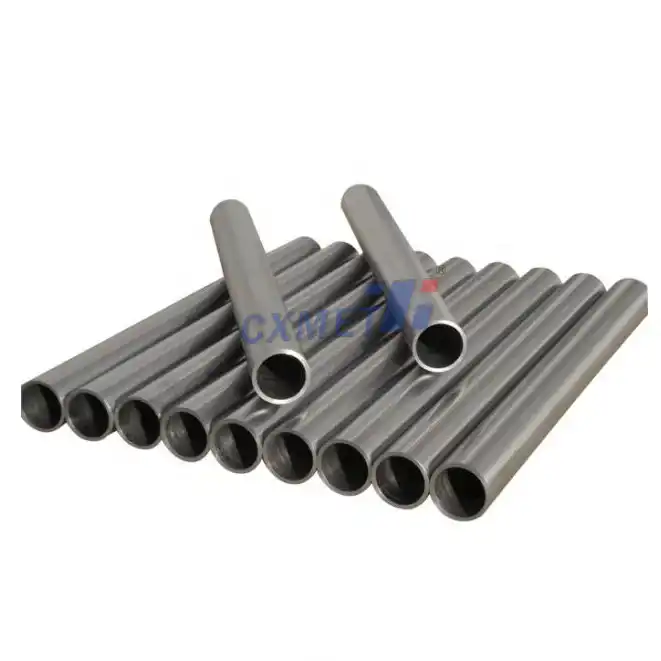

How do material grades affect the tolerances of ASTM B861 titanium tubes?

The material grades specified in ASTM B861 titaniyamu chubu can have a significant impact on the tolerances and dimensional specifications of titanium tubes. ASTM B861 covers several grades of titanium and titanium alloys, including:

• Gulu 1 (Titaniyamu Yoyera Yamalonda)
• Gulu 2 (Titaniyamu Yoyera Yamalonda)
• Gulu 3 (Titaniyamu Yoyera Yamalonda)
• Grade 9 (Ti-3Al-2.5V alloy)
• Grade 5 (Ti-6Al-4V alloy)

Each of these grades has unique properties that can affect the manufacturing process and, consequently, the achievable tolerances:

1. Formability: Commercially pure titanium grades (1, 2, and 3) are generally more formable than alloyed grades. This increased formability can allow for tighter tolerances in some dimensions, particularly in terms of straightness and ovality.
2. Strength: Alloyed grades like Grade 5 (Ti-6Al-4V) have higher strength, which can make them more challenging to form and machine. This may result in slightly looser tolerances for some dimensions compared to pure titanium grades.
3. Heat Treatment: Some titanium alloys require heat treatment to achieve their optimal properties. This process can cause slight dimensional changes, which must be accounted for in the manufacturing process to meet the required tolerances.
4. Texture and Grain Structure: Different grades can have varying grain structures and textures, which can affect the uniformity of the material during forming processes. This can impact the achievable tolerances, particularly for straightness and ovality.
5. Machining Characteristics: The machinability of different titanium grades varies, which can affect the ability to achieve tight tolerances, especially for features that require post-forming machining operations.

While the basic dimensional tolerances specified in ASTM B861 apply to all grades, manufacturers may need to adjust their processes and techniques to achieve these tolerances consistently across different material grades. In some cases, tighter tolerances may be achievable with certain grades, while others may require more generous allowances.

It's important for engineers and designers to consider the specific material grade when specifying tolerances for ASTM B861 titanium tubes. Consultation with experienced manufacturers can help determine the most appropriate and achievable tolerances for a given application and material grade.

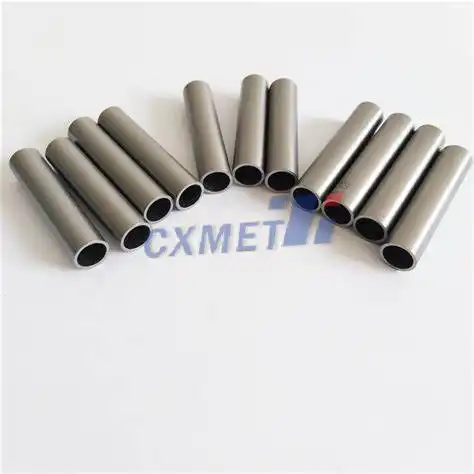

What inspection methods are used to verify ASTM B861 titanium tube dimensions?

Kuonetsetsa kuti ASTM B861 titaniyamu chubu meet the required dimensional specifications is crucial for their performance and reliability in various applications. Several inspection methods are employed to verify the dimensions of these tubes:

1. Optical Measurement Systems: Advanced optical measurement systems, such as laser micrometers and optical comparators, are used to measure the outside diameter and ovality of titanium tubes with high precision. These non-contact methods can provide rapid and accurate measurements without risking damage to the tube surface.
2. Coordinate Measuring Machines (CMM): CMMs are used for comprehensive dimensional inspection of titanium tubes. They can measure multiple dimensions, including length, diameter, and straightness, with high accuracy. CMMs are particularly useful for complex or custom tube geometries.
3. Ultrasonic Testing: This non-destructive testing method is used to measure wall thickness and detect internal defects in titanium tubes. Ultrasonic thickness gauges can provide accurate measurements of wall thickness at various points along the tube's length.
4. Micrometer and Caliper Measurements: Traditional hand tools like micrometers and calipers are still widely used for spot-checking dimensions such as outside diameter, wall thickness, and length. While not as precise as some automated methods, they are valuable for quick verifications and small batch inspections.
5. Profilometers: These instruments are used to measure the surface profile and roughness of titanium tubes. While not directly related to dimensional tolerances, surface finish can be an important factor in certain applications and is often specified alongside dimensional requirements.
6. Straightness Gauges: Specialized straightness gauges or alignment telescopes are used to verify the straightness of longer titanium tubes. These instruments can detect even slight deviations from a straight line along the tube's length.
7. Hydrostatic Testing: While primarily used to test the pressure integrity of tubes, hydrostatic testing can also reveal dimensional issues such as excessive ovality or wall thickness variations that might not be apparent through other measurement methods.
8. X-ray and CT Scanning: For critical applications or complex tube geometries, X-ray inspection or computed tomography (CT) scanning may be used to verify internal dimensions and detect any hidden defects or inconsistencies.

The choice of inspection method depends on factors such as the specific dimension being measured, the required accuracy, the production volume, and the criticality of the application. Many manufacturers use a combination of these methods to ensure comprehensive verification of ASTM B861 titanium tube dimensions.

Quality control processes typically involve both in-process measurements during manufacturing and final inspections before shipment. Statistical process control (SPC) techniques are often employed to monitor dimensional consistency over time and identify any trends or shifts in the manufacturing process that could affect dimensional accuracy.

It's worth noting that while ASTM B861 specifies the dimensional requirements, it does not dictate specific inspection methods. Manufacturers and customers may agree on additional or alternative inspection techniques based on the specific application requirements or industry standards.

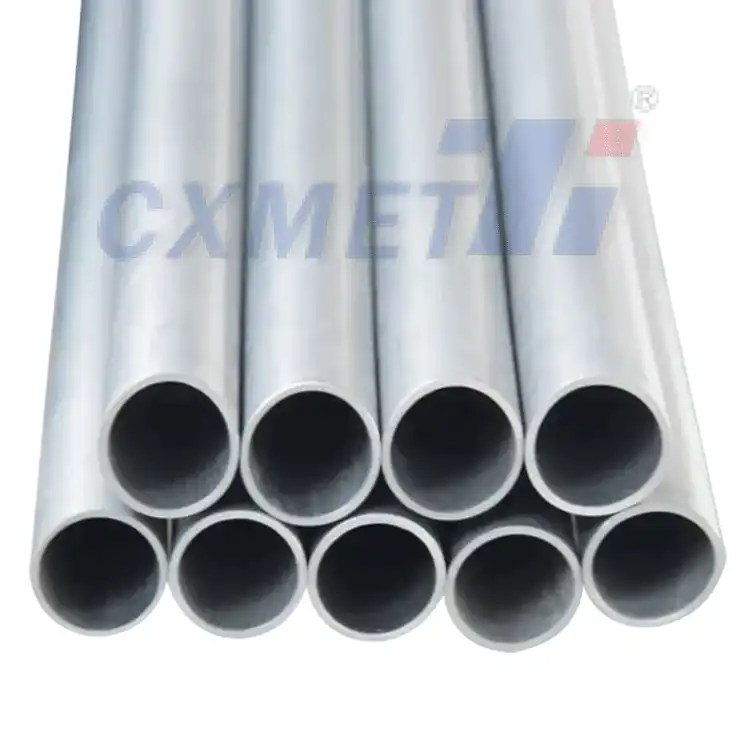

In conclusion, the tolerances and dimensional specifications for ASTM B861 titaniyamu chubu are critical aspects of their quality and performance. Understanding these requirements, the impact of material grades, and the methods used to verify dimensions is essential for anyone involved in the specification, manufacture, or use of these high-performance materials. By adhering to these standards and employing rigorous inspection methods, manufacturers can ensure that ASTM B861 titanium tubes meet the exacting demands of various industries, from aerospace to chemical processing.
